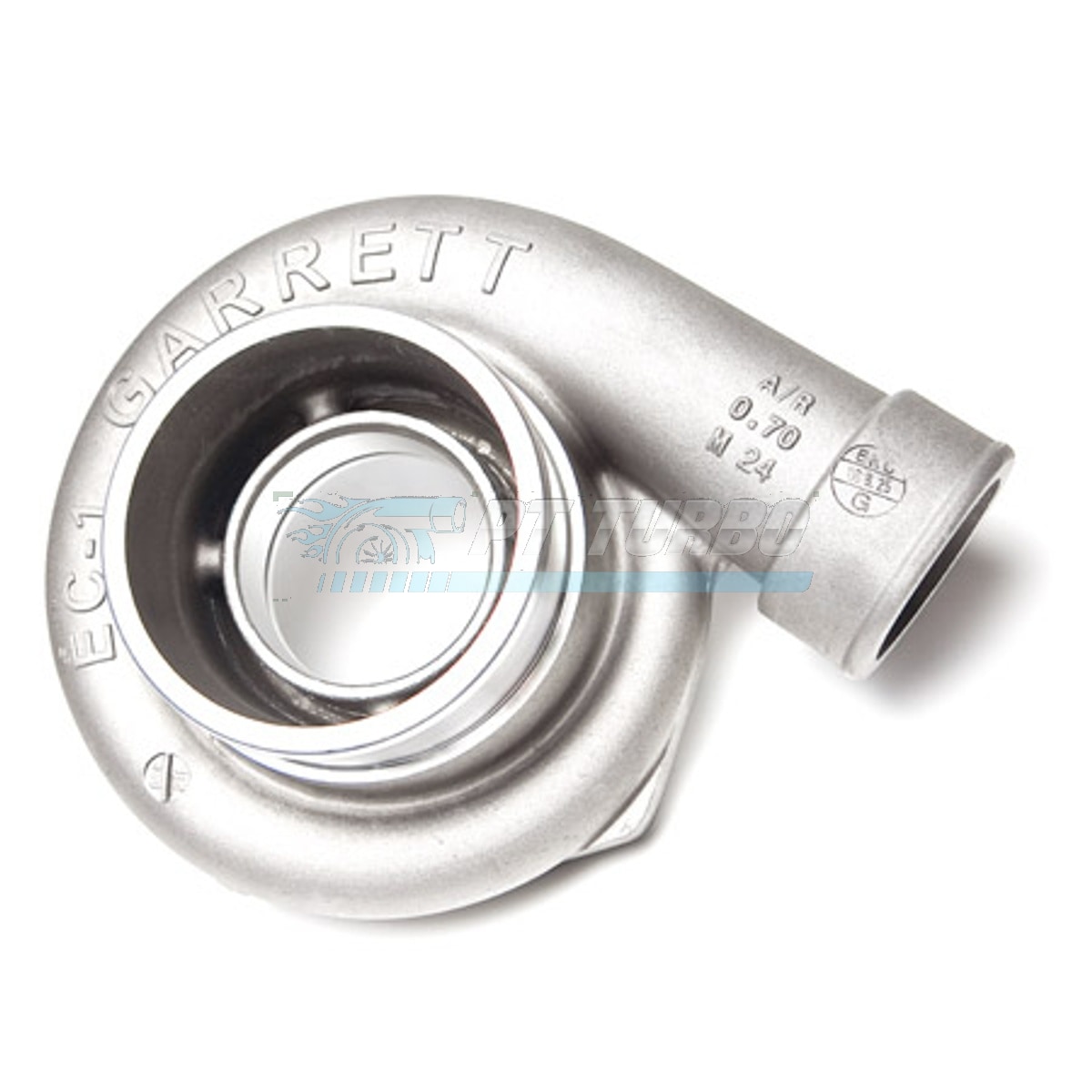

Compressor housing (T04S Frame) for GT35R, 82mm 56 trim wheel, No Anti-surge

This T04S frame compressor housing is purpose-built for the Garrett GT35R turbocharger, designed to match an 82mm inducer, 56 trim compressor wheel for enthusiasts building serious high-airflow turbo systems. With its larger inlet and outlet sizing and no anti-surge design, this housing is engineered for builders who prioritize maximum airflow capacity over anti-surge refinement. It’s the correct choice for anyone running a GT35R core who needs the OEM-spec T04S housing configuration. Specifications Compressor Wheel Inducer: 82mm Compressor Wheel Trim: 56 trim Compressor Housing A/R: .70 Frame Size: T04S Compressor Inlet Size: 4″ Compressor Outlet Size: 2.5″ Anti-Surge Design: No anti-surge Garrett P/N: 409722-0026 Performance & Application This compressor housing is designed specifically for the GT35R turbocharger platform, pairing with the 82mm 56 trim compressor wheel for high-flow performance applications. The T04S frame and larger 4″ inlet sizing support increased airflow demands compared to smaller frame alternatives, making it well-suited for high-horsepower builds where flow capacity is the priority. Since this housing features no anti-surge design, it is best suited for builds where surge characteristics are not a primary concern, such as drag or high-boost applications running a GT35R core. Frequently Asked Questions What is the A/R ratio of this compressor housing? This compressor housing uses a .70 A/R ratio. Does this housing have an anti-surge feature? No, this housing is a no anti-surge design. What inlet and outlet sizes does this housing use? This T04S housing features a 4″ inlet and a 2.5″ outlet. What wheel size and trim is this housing designed for? This housing is designed for an 82mm inducer, 56 trim compressor wheel used on the GT35R turbocharger. For GT35R-based builds demanding maximum compressor-side airflow with genuine Garrett T04S housing architecture, this is the correct, spec-accurate housing to run.
